Ortofon Concorde Music Red

Premium MM cartridge, elliptical tip, diamond tip (tipped)Building on a rich heritage that began when we launched the original Concorde, Concorde Music has a storied history as one of the most celebrated cartridges in the audio world. Originally developed as a solution to the challenge of easy mounting on an arm without screws and wires, Concord...

Viac ID: 554522 EAN: 5705796080629

Záruka najlepšej ceny

Ak tento výrobok nájdete inde lacnejšie, rozdiel vám doplatíme!
Čítajte viac

Stav

Nové

Dostupnosť

Na ceste

Cena

147,99 € Doprava zdarma

Dostupnosť

Na ceste

Popis
Recenzie 0

Premium MM cartridge, elliptical tip, diamond tip (tipped)
Building on a rich heritage that began when we launched the original Concorde, Concorde Music has a storied history as one of the most celebrated cartridges in the audio world. Originally developed as a solution to the challenge of easy mounting on an arm without screws and wires, Concorde's unique design has won the Danish Industrial Design Award and become an icon in the audio industry.
Made in Denmark

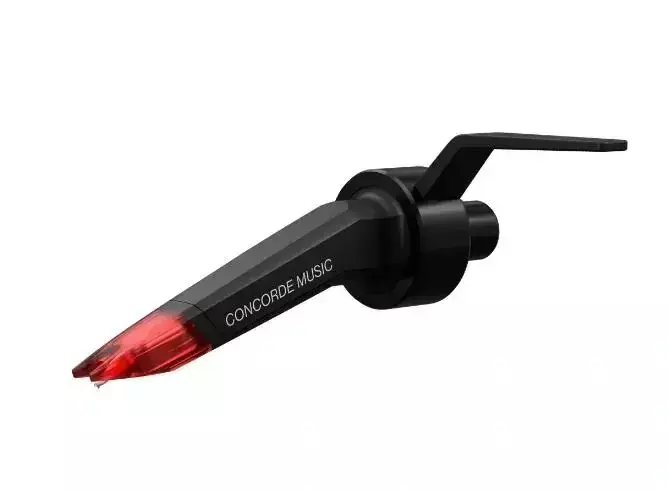

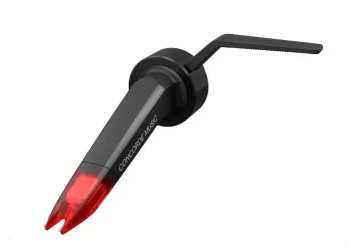

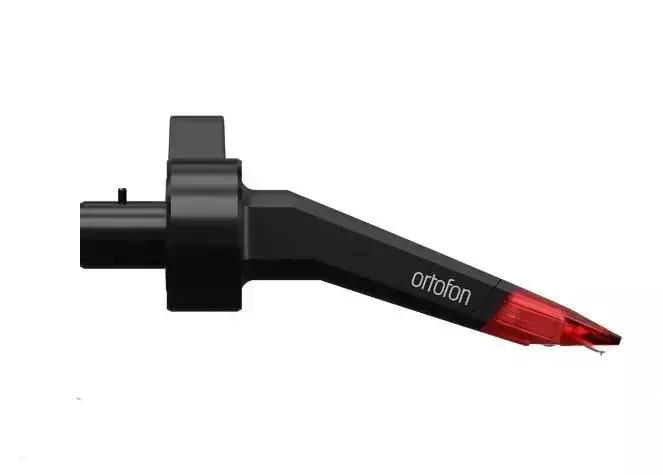

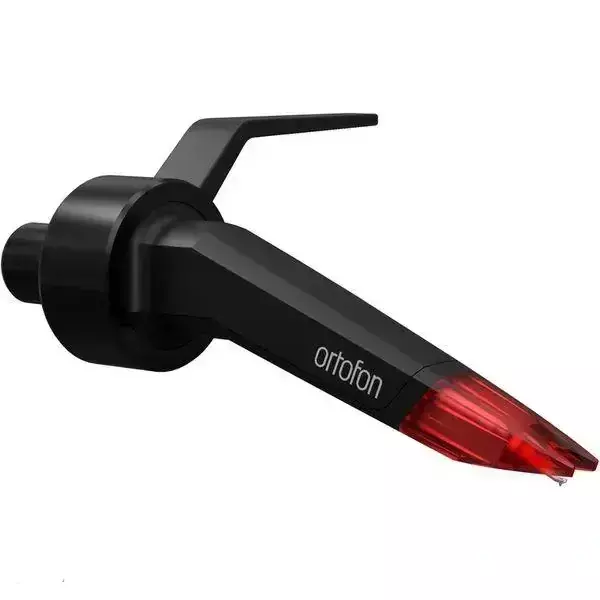

Concorde Music Red

Experience balanced and dynamic sound quality with Concorde Music Red. The Concorde Music Red features an elliptical tip / stylus / on an aluminum beam and can be upgraded throughout the series to the Concorde Music Black LVB 250 very simply.... changing the tip.

A simple solution for easy installation on the S-arm without screws and wires !

Installing a Music Concorde series transfer case on your turntable is easy and straightforward. No tools are required, making installation hassle-free and convenient for all users. This is thanks to the bayonet/SME connector, which makes it compatible with all S-shaped arms.

NO - for installation on straight arms ! Curved and S-shaped only.

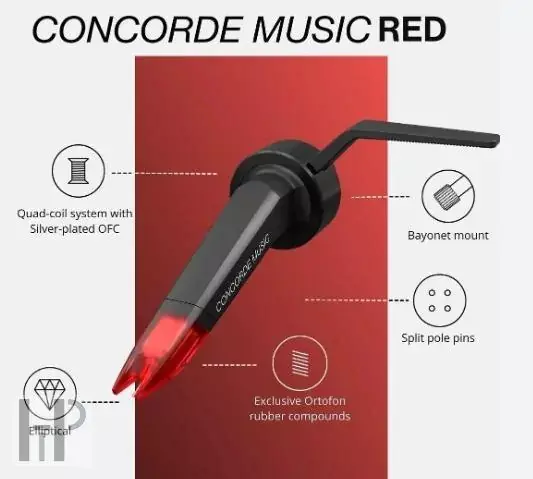

Concorde Music Red uses Ortofon's exclusive rubber compound to suspend the stylus.

Concorde Music features a four coil Ortofon generator with split pole pins.

The coils are made of silver-plated, oxygen-free copper.

The Concorde Music can be upgraded with any stylus in the Concorde Music series, allowing an upgrade path throughout the series all the way up to the Concorde Music Black LVB 250.

Specifications:

Channel balance at 1 kHz
1 dB
Output voltage at 1 kHz, 5 cm/sec
6 mV
Channel separation at 1 kHz
26 dB
Channel separation at 15 kHz
18 dB
Frequency range 20Hz - 20kHz
+2/0 dB
Tracking capability at 315 Hz at recommended tracking strength
80 um
Flexibility, dynamic, lateral
15 um/mN
Stylus type
Shibata diamond on aluminium bracket
Touch tip radius
r/R 6/50 um
Tracking force, recommended
1,8 g
Tracking angle
20°
Internal impedance, DC resistance
1.27 kΩ
Transmitter colour
Black/Red
Cartridge weight
18 g
Recommended load resistance
47 kΩ
Internal inductance
815 mH
Recommended load capacitance
150-300 pF
